Print Guide

What to print for the free base set, the settings and colors, and how it goes together. The add-on fleets have their own print lists, linked at the bottom.

Base Set v0.5.4

Download the base set (zip)

This list as a PDF

How to do it

1Get the files. Download the zip, or open the plates below in CubbySlicer, one for each color.
2Print each color. The plates have the settings in them. If you slice the STLs yourself, use these settings.
3Put it together with the assembly steps.

Settings

These work for every part in every fleet. The tables say which parts need supports.

Material: PLA
Layer height: 0.12–0.20 mm (0.16 mm recommended)
Z contouring: On
Walls: 4
Orientation: Use your slicer's auto-orient.
Infill: 10% or more

Queen's Fleet

3 frigates with 4 fittings each (2 masts, 2 cargo)

Part	Qty	Color	Supports

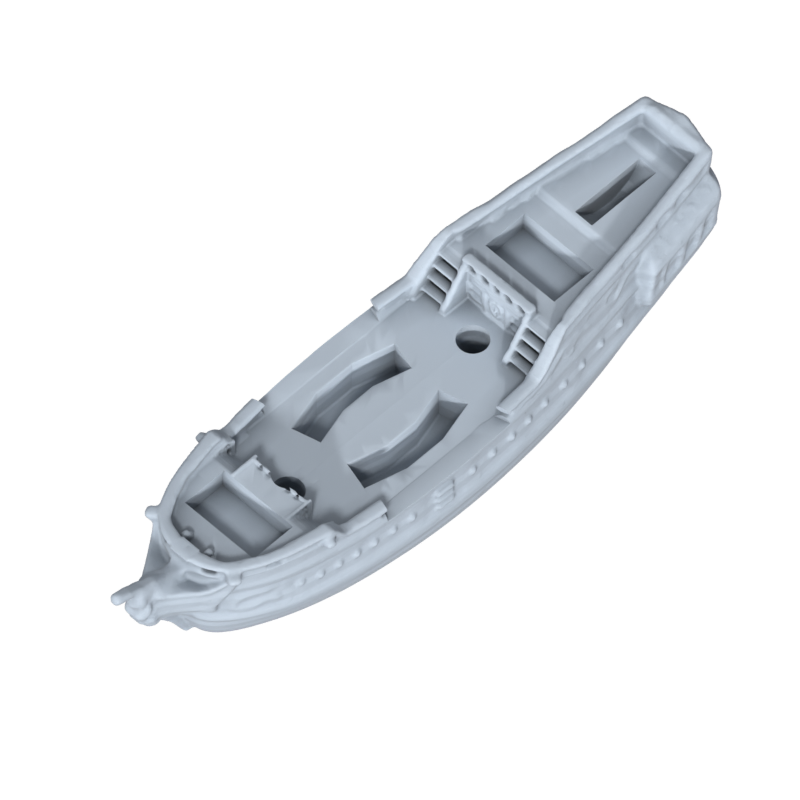

Hull ship-queens-fleet.stl	3	Pale blue-grey or brown PLA	No

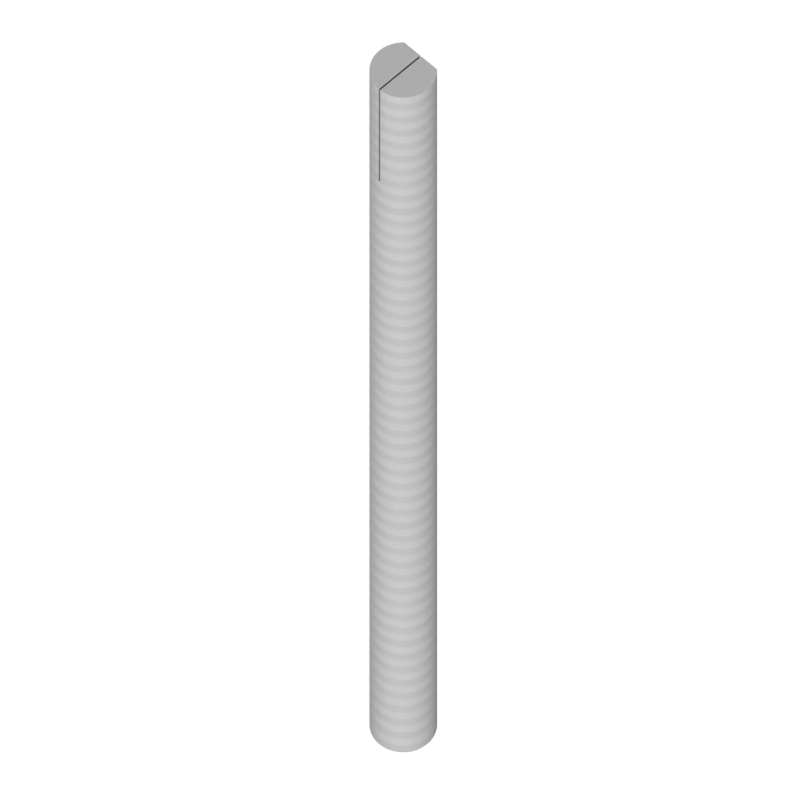

Mast mast.stl	6	Brown	No
Sail sail.stl	6	White	No

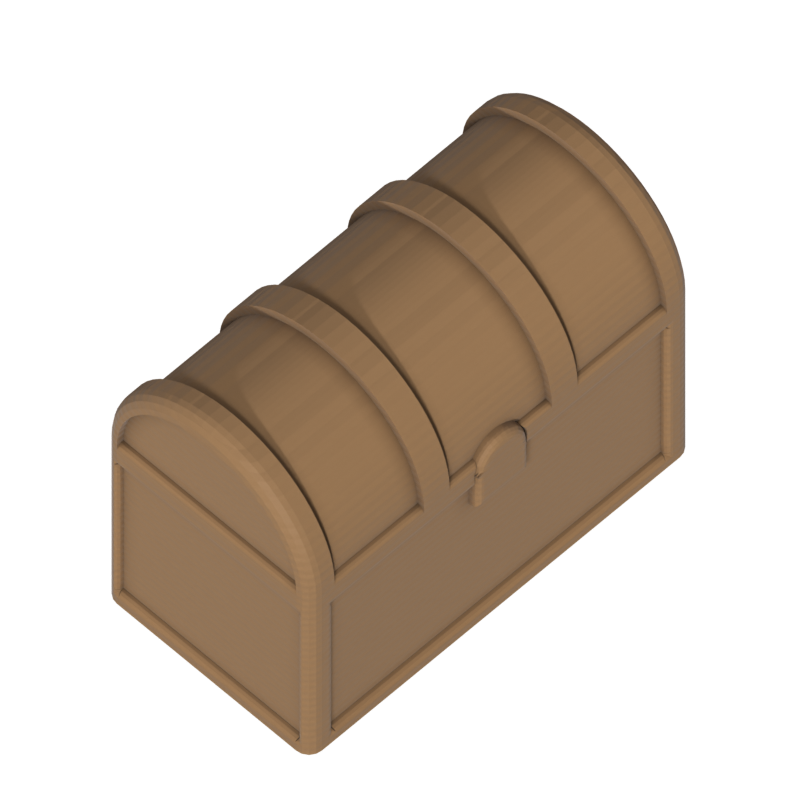

Cargo cargo.stl	6	Brown	No

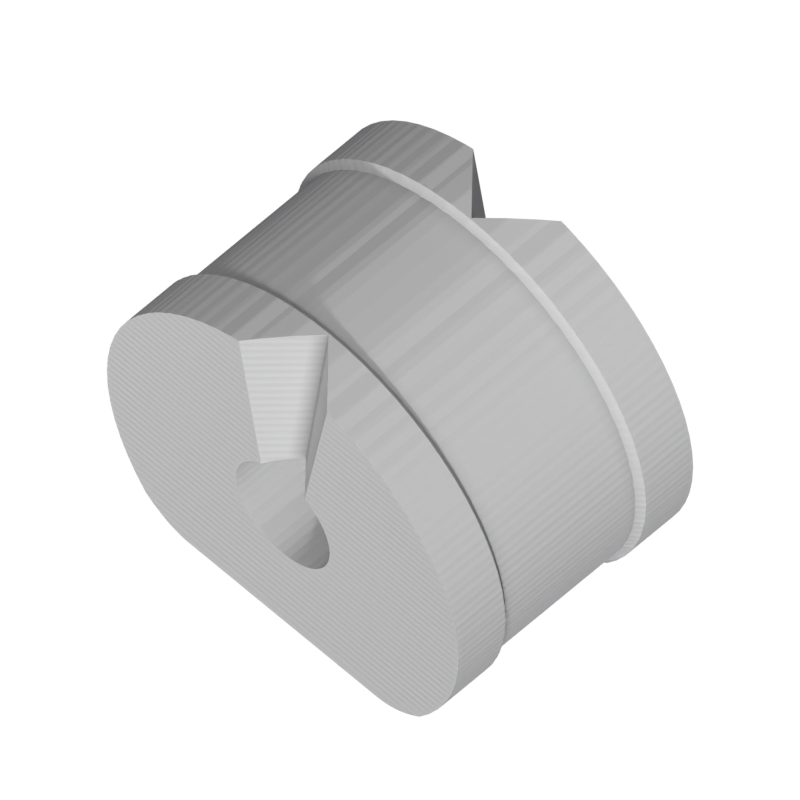

Movement wheel movement-wheel.stl	3	Any	No

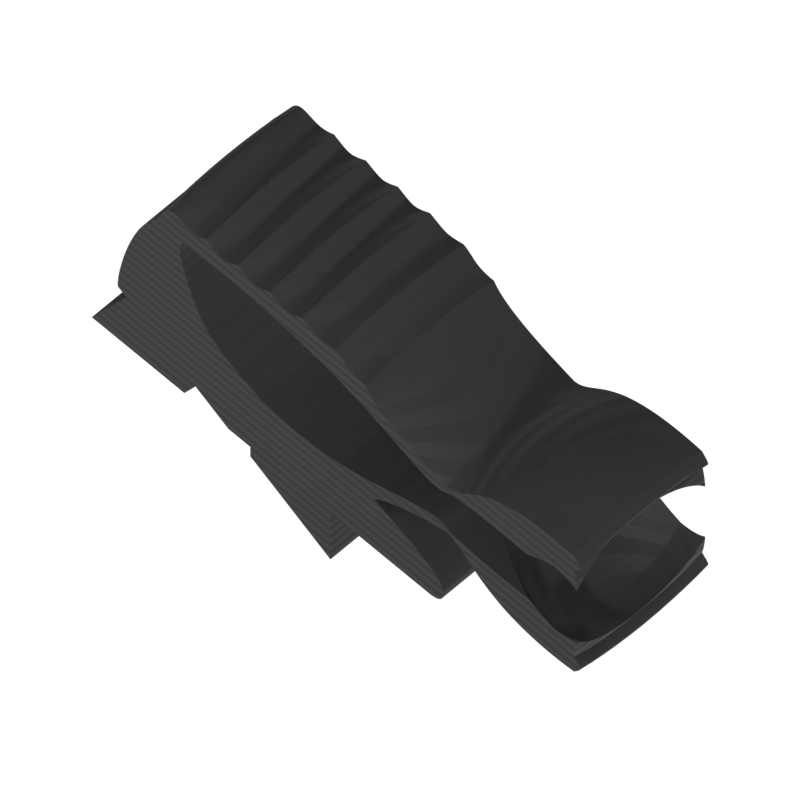

Cannon cannon.stl	4	Black	No

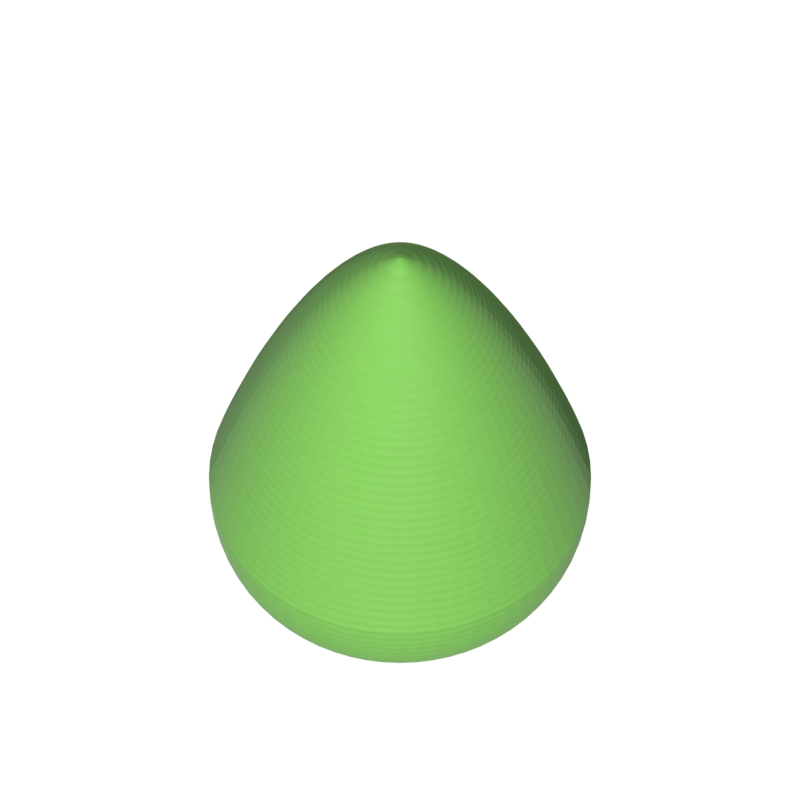

Cannonball cannonball.stl	10	Something bright, like neon green or orange	No

Corsairs

3 sloops with 3 fittings each (2 masts, 1 cargo)

Part	Qty	Color	Supports

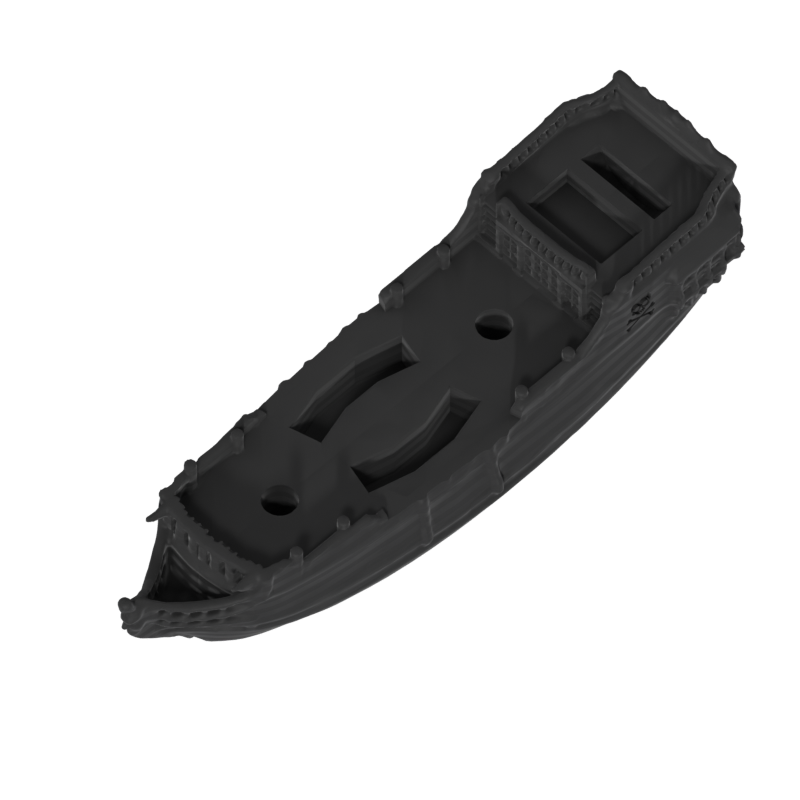

Hull ship-corsair.stl	3	Black PLA	No
Mast mast.stl	6	Black PLA	No

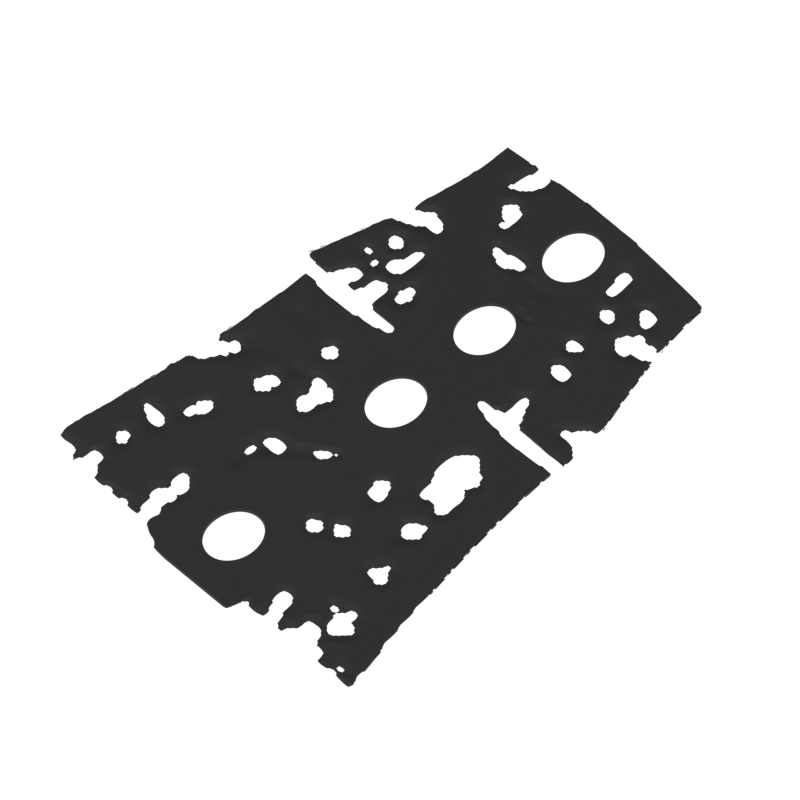

Torn sail sail-damaged.stl Or sail.stl.	6	Black PLA	No
Cargo cargo.stl	3	Brown	No
Movement wheel movement-wheel.stl	3	Any	No
Cannon cannon.stl	4	Black	No
Cannonball cannonball.stl	10	Something bright, like neon green or orange	No

Islands, coins and terrain

Per player

Part	Qty	Color	Supports

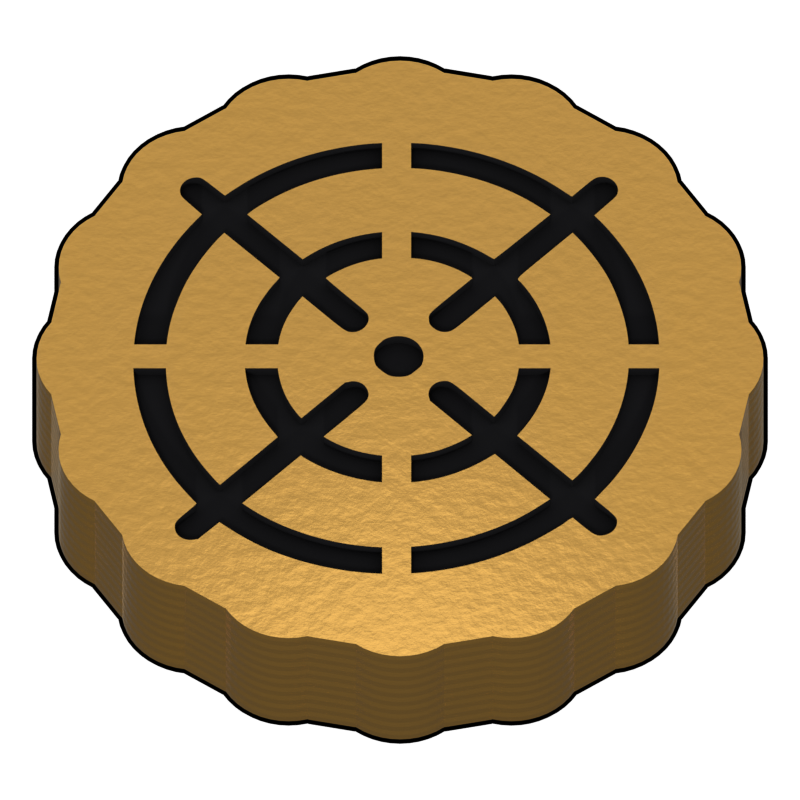

Coins coin-*.stl 5 Brace for Impact, 2 Full Sail, 2 Evasive Maneuvers, 5 Skilled Gunner, 4 Repair Crew, 2 Boarding Party.	20	Gold	No

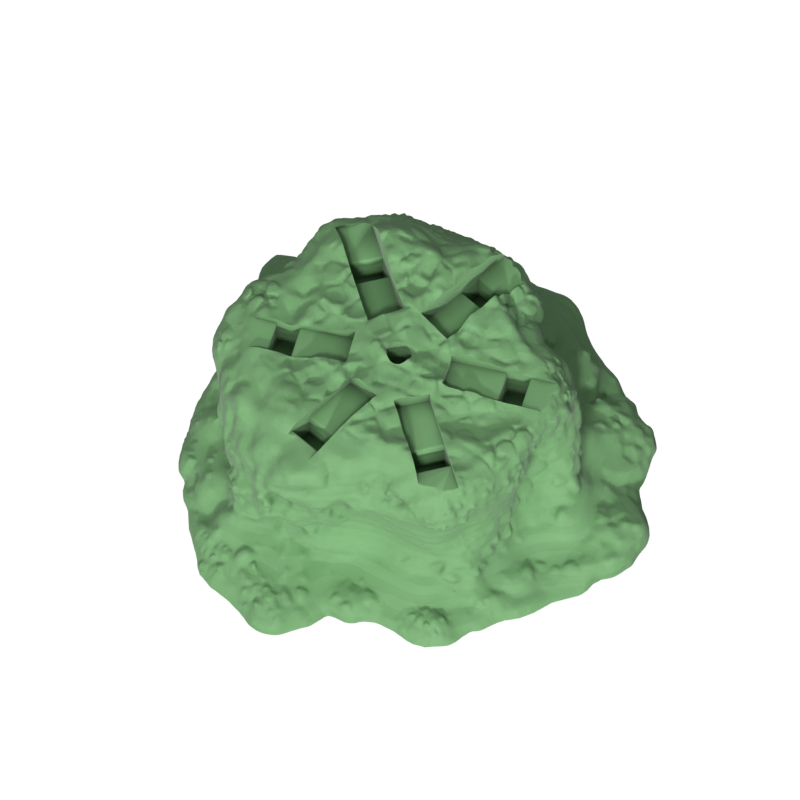

Island island.stl Or island-topper.stl on a box or a mug.	1–2	Green, sand or grey	No

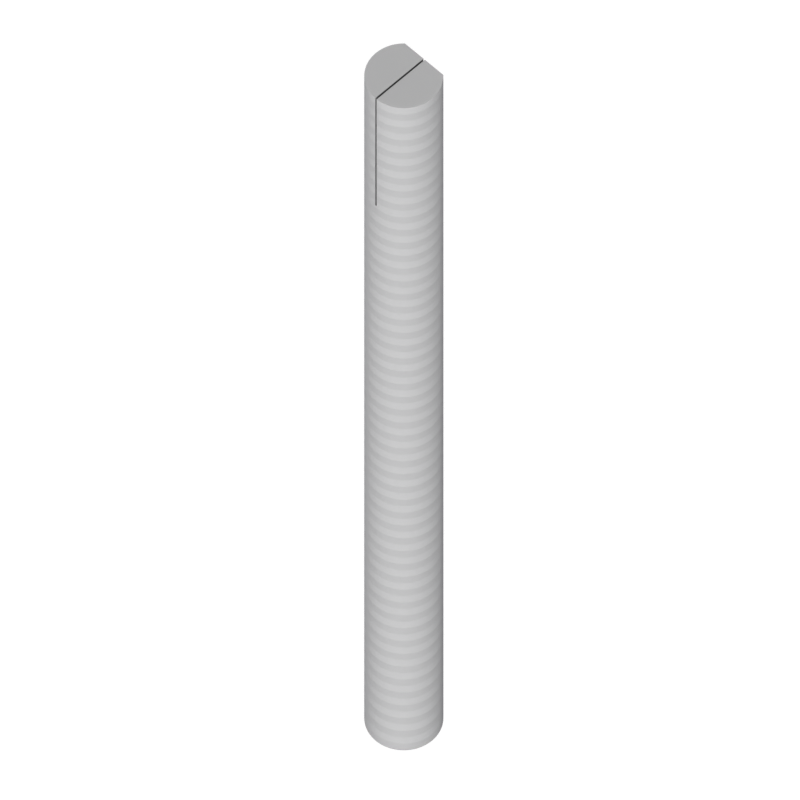

Short mast mast-short.stl One per island	1–2	Brown	No

Per table

Part	Qty	Color	Supports

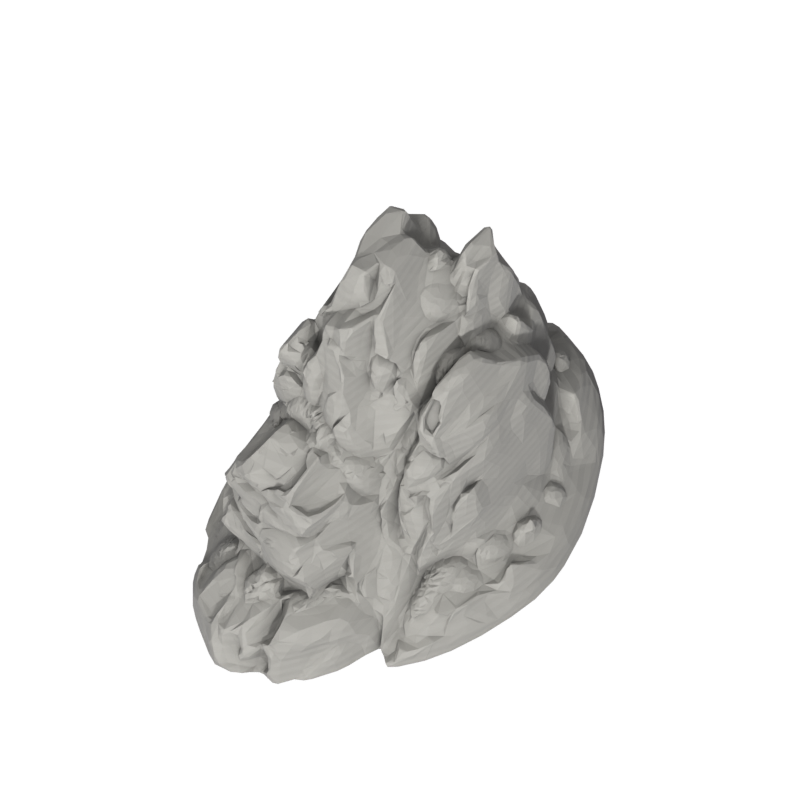

Rock rock1.stl With three or more players, 2 per fleet.	2–6	Grey	No

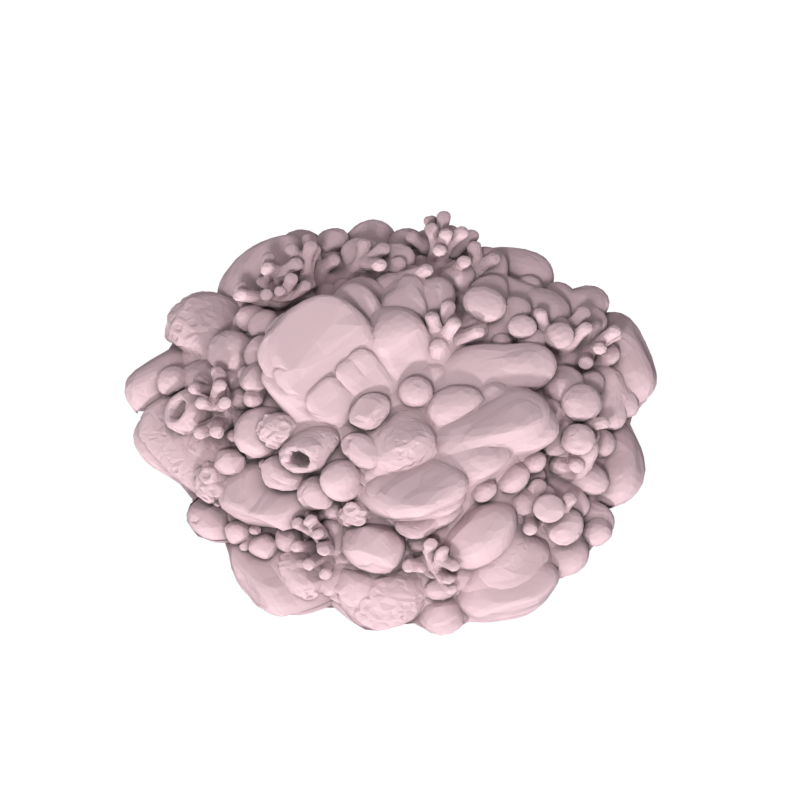

Reef reef.stl	0–2	Pale pink	No

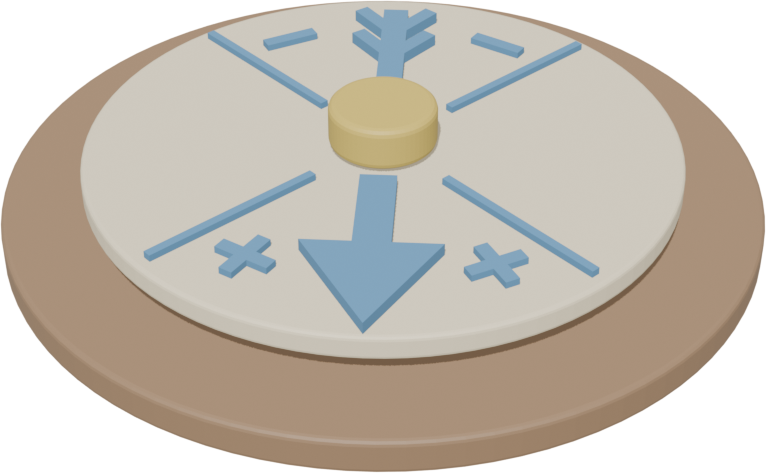

Wind dial wind-dial-*.stl Optional. A steel M8 washer spins better.	1 each	Any	No

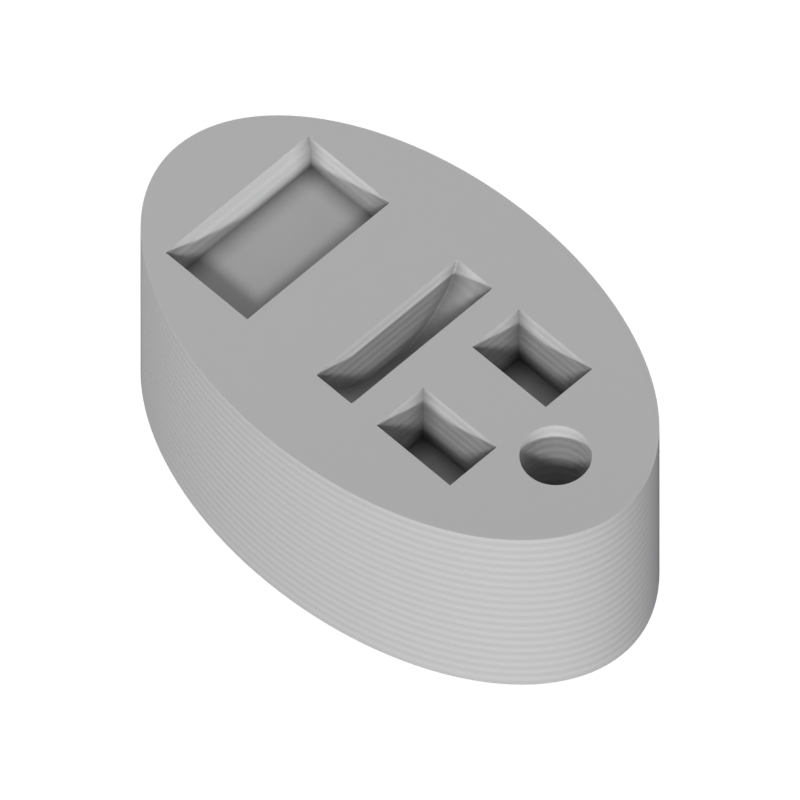

Fit test ship-tolerance-test.stl Print it first.	1	Anything	No

Print it in CubbySlicer

Each file is one color's parts from this list, laid out on a 256 mm plate with the settings. Open one in CubbySlicer (it runs in your browser) or download the .3mf for OrcaSlicer. The by a file name in the tables opens just that file.

Queen's Fleet

Pale blue-grey or brown PLA3 hullsOpen .3mf
Brown6 masts and 6 cargoOpen .3mf
White6 sailsOpen .3mf
Any3 movement wheelsOpen .3mf
Black4 cannonsOpen .3mf
Something bright10 cannonballsOpen .3mf

Corsairs

Black PLA3 hulls, 6 masts and 6 torn sailsOpen .3mf
Brown3 cargoOpen .3mf
Any3 movement wheelsOpen .3mf
Black4 cannonsOpen .3mf
Something bright10 cannonballsOpen .3mf

Islands, coins and terrain

Gold20 coinsOpen .3mf
Green, sand or grey2 islandsOpen .3mf
Brown2 short mastsOpen .3mf
Grey6 rocksOpen .3mf
Pale pink2 reefsOpen .3mf
Any1 wind dial and 1 fit testOpen .3mf

Putting it together

Everything press-fits, so you don't need glue or tools. The wheel is the only part you fit once and leave in.

Print the fit test (ship-tolerance-test.stl in the base set) first. If a peg is loose, scale it up 0.5 to 1% in your slicer. If it's tight, sand it a bit. If it won't go in at all, your nozzle is probably too close to the bed.
Print a spare cannon or two. The arm loses tension after a few hundred shots.
Stretch a 10 mm rubber band or silicone cable tie around each wheel's rim and push the wheel into the slot under the stern. It should be snug but still spin, and it stays in.
Plug the fittings into the deck.
Slide the sails down over the masts, and a paper flag into the slot at the top of a mast.
Plug a short mast into each island for its flag.

Also needed

Each player needs their faction card, some paper flags for the masts and a cloth bag for the coins.

Add-on fleets

Each one has its own print list. Their downloads have the hulls and the fleet's own parts, and the masts, cargo, cannons and wheels come from the base set above.
